Series NNF-Sealed Double Row Full Complement Cylindrical Roller Bearings

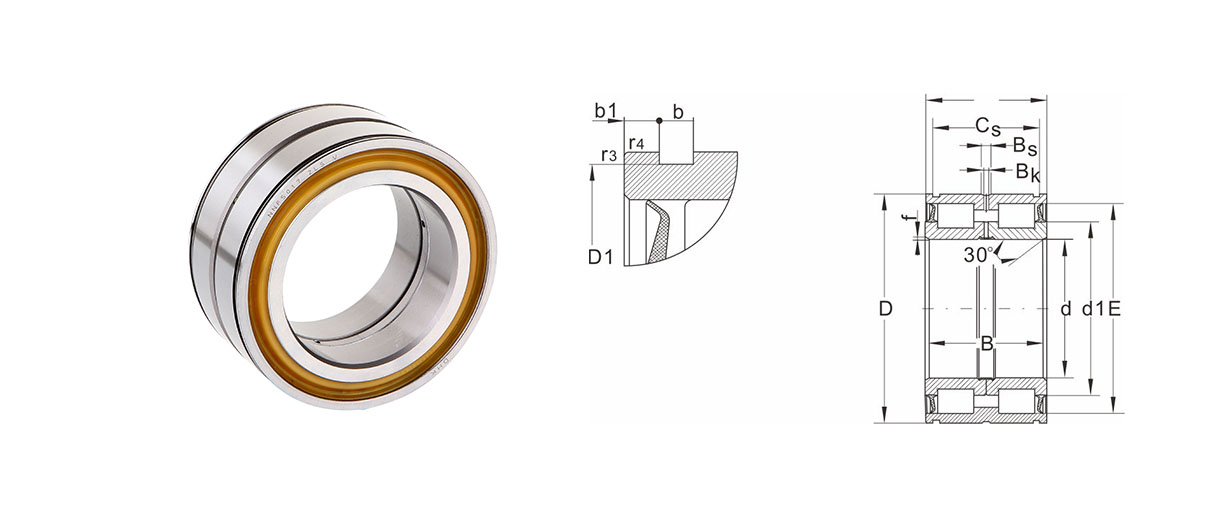

Model Dimensions Rated load Limiting speed(rpm) Bearing dimensions C11)  +-0.1 C12)  +-0.1 Stop ring Weight
d D B C CS r3,r4 Min Dynamic load Cr Static load Cor d1 D1 b b1 Bs Bk f WRE to DIN 417
NNF5004.2LS.V
20
42
30
29 24.7 0.3 40.5 49 3600 28.1 40 1.9 2.15 4.5 3 0.5 21.5 21 WRE42 42×1.75 0.2
NNF5005.2LS.V
25
47
30
29 24.7 0.3 44.5 65.3 3000 33 44.8 1.8 2.15 4.5 3 0.5 21.5 21 WRE47 47×1.75 0.23
NNF5006.2LS.V
30
55
34
33 28.2 0.3 48.5 70 2600 39 52.8 2.1 2.4 4.5 3 0.5 25 24 WRE55 55×2 0.35
NNF5007.2LS.V
35
62
36
35 30.2 0.3 66 95.8 2200 45 59.8 2.1 2.4 4.5 3 0.5 27 26 WRE62 62×2 0.45
NNF5008.2LS.V
40
68
38
37 32.2 0.6 79 121 2000 50.5 65.8 2.7 2.4 4.5 3 0.8 25 27 WRE68 68×2.5 0.53
NNF5009.2LS.V
45
75
40
39 34.2 0.6 95.1 150 1800 56.4 72.8 2.7 2.4 4.5 3 0.8 30 29 WRE75 75×2.5 0.68
NNF5010.2LS.V
50
80
40
39 34.2 0.6 101 162 1700 61.2 77.8 2.7 2.4 4.5 3 0.8 30 29 WRE80 80×2.5 0.73
NNF5011.2LS.V
55
90
46
45 40.2 0.6 119 195 1500 68 87.4 3.2 2.4 4.5 3.5 1 35 34 WRE90 90×3 1.1
NNF5012.2LS.V
60
95
46
45 40.2 0.6 123 210 1400 73 92.5 3.2 2.4 4.5 3.5 1 35 34 WRE95 95×3 1.2
NNF5013.2LS.V
65
100
46
45 40.2 0.6 128 224 1300 78 97.4 3.2 2.4 4.5 3.5 1 35 34 WRE100 100×3 1.3
NNF5014.2LS.V
70
110
54
53 48.2 0.6 190 337 1200 85 107.1 4.2 2.4 5 3.5 1 43 40 WRE110 110×4 1.85
NNF5015.2LS.V
75
115
54
53 48.2 0.6 194 300 1400 90 112.1 4.2 4.2 -- -- 1 43 40 WRE115 115×4 1.96
NNF5016.2LS.V
80
125
60
59 54.2 0.6 233 420 1000 97 122.1 4.2 2.4 5 3.5 1.5 49 46 WRE125 125×4 2.7
NNF5017.2LS.V
85
130
60
59 54.2 0.6 211 350 1200 103.9 127.1 4.2 4.2 -- -- 1.5 49 46 WRE130 130×4 2.83
NNF5018.2LS.V
90
140
67
66 59.2 0.6 297 552 900 109 137 4.2 3.4 5 3.5 1.5 54 51 WRE140 140×4 3.8
NNF5019.2LS.V
95
145
67
66 59.2 0.6 315 530 1100 113.4 142 4.2 4.2 -- -- 1.5 54 51 WRE145 145×4 3.88
NNF5020.2LS.V
100
150
67
66 59.2 0.6 314 580 850 118 147 4.2 3.4 6 3.5 1.5 54 51 WRE150 150×4 4.05
NNF5022.2LS.V
110
170
80
79 70.2 0.6 380 699 750 132 167 4.2 4.4 6 3.5 1.8 65 62 WRE170 170×4 6.45
NNF5024.2LS.V
120
180
80
79 71.2 0.6 402 745 700 141 176 4.2 3.9 6 3.5 1.8 65 63 WRE180 180×4 6.9
NNF5026.2LS.V
130
200
95
94 83.2 0.6 572 4050 630 155 196 4.2 5.4 7 4 1.8 77 75 WRE200 200×4 10.5
NNF130.2LS.V
130
190
80
79 71.2 0.6 430 790 800 150.6 186 4.2 3.9 -- -- 1.8 65 63 WRE190 190×4 7.5
NNF5028.2LS.V
140
210
95
94 83.2 0.6 594 1140 600 167 206 5.2 5.4 7 4 1.8 77 73 WRE210 210×5 11
NNF140.2LS.V
140
200
80
79 71.2 0.6 445 840 750 160 196 4.2 3.9 -- -- 1.8 65 63 WRE200 200×4 8
NNF5030.2LS.V
150
225
100
99 87.2 0.6 693 1310 560 177 221 5.2 5.9 7 4 2 81 77 WRE225 225×5 13.5
NNF150.2LS.V
150
210
80
79 71.2 0.6 465 920 700 174.4 206 5.2 3.9 -- -- 1.8 65 61 WRE210 210×5 8.4
NNF5032.2LS.V
160
240
109
108 95.2 0.6 721 1410 500 191 236 5.2 6.4 7 4 2 89 85 WRE240 240×5 16.5
NNF160.2LS.V
160
220
80
79 71.2 0.6 480 970 700 184 216 5.2 3.9 -- -- 1.8 65 61 WRE220 220×5 8.8
NNF5034.2LS.V
170
260
122
121 107.2 0.6 935 1800 480 203 254 5.2 6.9 7 4 2 99 97 WRE260 260×5 22.5
NNF170.2LS.V
170
230
80
78 71.2 0.6 490 1030 650 194 193.9 5.2 3.9 -- -- 1.8 65 61 WRE230 230×5 9.3
NNF5036.2LS.V
180
280
136
135 118.2 0.6 1080 2130 450 220 274 5.2 8.4 8 4 2 110 108 WRE280 280×5 30
NNF180.2LS.V
180
240
80
79 71.2 0.6 500 1080 600 203 203.1 5.2 3.9 -- -- 1.8 65 61 WRE240 240×5 9.8
NNF5038.2LS.V
190
290
136
135 118.2 0.6 1100 2210 430 228 284 5.2 8.4 8 4 2 110 108 WRE290 290×5 31.5
NNF190.2LS.V
190
260
80
79 73.2 0.6 520 1130 550 217.6 254 5.2 2.9 -- -- 1.8 65 63 WRE260 260×5 12.7
NNF5040.2LS.V
200
310
150
149 128.2 0.6 1340 2870 400 245 304 6.3 10.4 8 4 2 120 116 WRE310 310×6 42
NNF200.2LS.V
200
270
80
79 73.2 0.6 540 1210 550 227.2 264 5.2 2.9 -- -- 1.8 65 63 WRE270 270×5 13.2
NNF5044.2LS.V
220
340
160
159 138.2 1 1510 3130 360 264 334 6.3 10.4 8 6 2 130 126 WRE340 340×6 53.5
NNF220.2LS.V
220
300
95
94 83.2 1 700 1550 480 249 294 5.2 5.4 -- -- 2 75 73 WRE300 300×5 19.5
NNF5048.2LS.V
240
360
160
159 138.2 1 1570 3310 340 283 354 6.3 10.4 9.4 6 2 130 126 WRE360 360×6 57.5
NNF240.2LS.V
240
320
95
94 83.2 1 740 1700 480 271.7 314 6.3 5.4 -- -- 2 75 71 WRE320 320×6 21
NNF5052.2LS.V
260
400
190
189 162.2 1.1 2380 4700 400 305 394 6.3 13.4 -- -- 3 154 150 WRE400 400×6 84.5
NNF260.2LS.V
260
340
95
94 83.2 1 840 1990 440 292.7 334 6.3 5.4 -- -- 3 75 71 WRE340 340×6 22.5
NNF5056.2LS.V
280
420
190
189 163.2 1.1 2600 5200 380 321 413 7.3 12.9 -- -- 3 154 149 WRE420 420×7 90
NNF280.2LS.V
280
360
95
94 83.2 1 870 2130 430 327 354 6.3 5.4 -- -- 3 75 71 WRE360 360×6 24
NNF5060.2LS.V
300
460
218
216 185.2 1.1 3000 5800 340 346.9 453 7.3 15.4 -- -- 3 176 171 WRE460 460×7 126
NNF300.2LS.V
300
380
95
94 83.2 1 900 2250 380 328 374 6.3 5.4 -- -- 3 75 71 WRE380 380×6 25.5
